Product Description

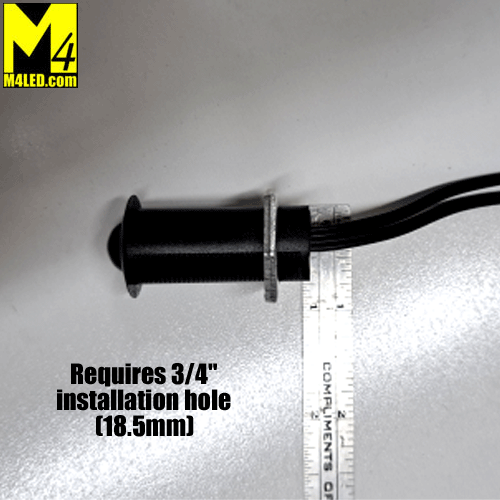

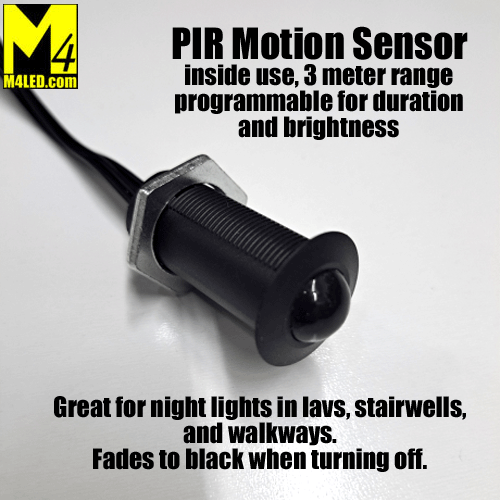

PIR (Proximity InfaRed) Motion sensor for indoor use. Install in bracket or drilled hole 3/4" wide (18mm). These are great for adding automatic light for night lights in the LAV, walkways, or stairwells, or having a full light come on any time you walk into an area or open a cabinet. When this light turns off it elegantly fades away.
There is a white programming button on the back. If you hold the button down it will dim and you can set the level of light. Also use the white button to set the duration of light from approximately 20 to 300 sections (4 settings). Connect a light, push the button and the light blinks once for 20 seconds, push again and blinks twice for 60 seconds, etc.

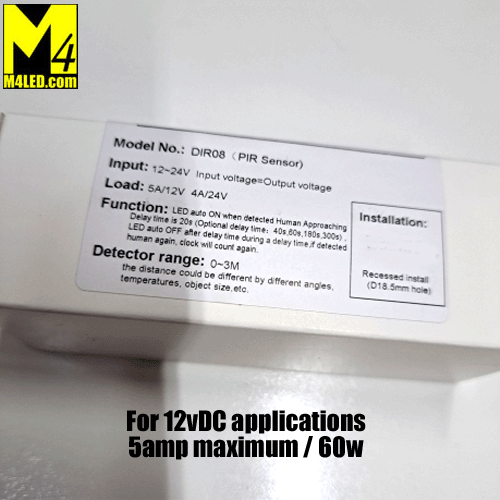

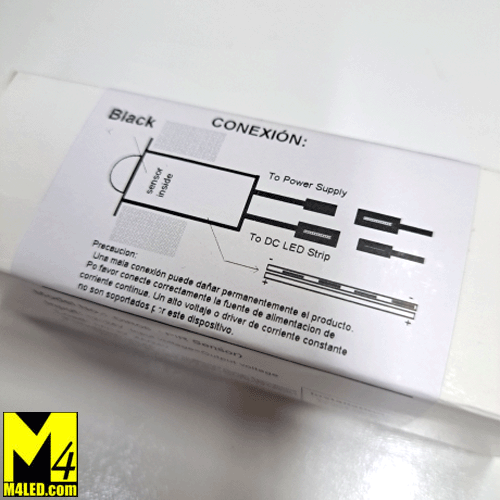

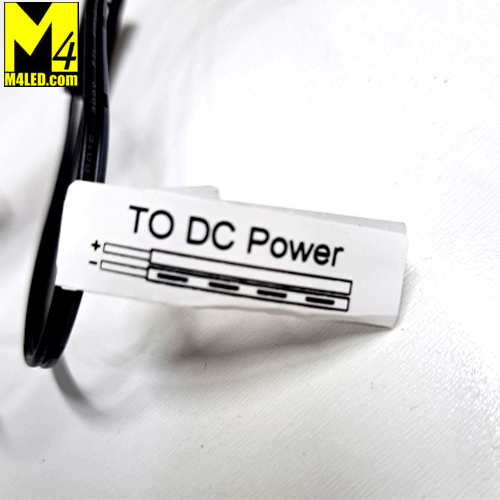

Simple well marked wiring. Made for standard 12 volt system ranges (9-24). Do not exceed 5 amp capacity, if you need help with sizing please ask. Damage from overloading is not covered under warranty.
Approximately 100 degrees of motion range at up to 3 meters. Be sure to see the product video link.
